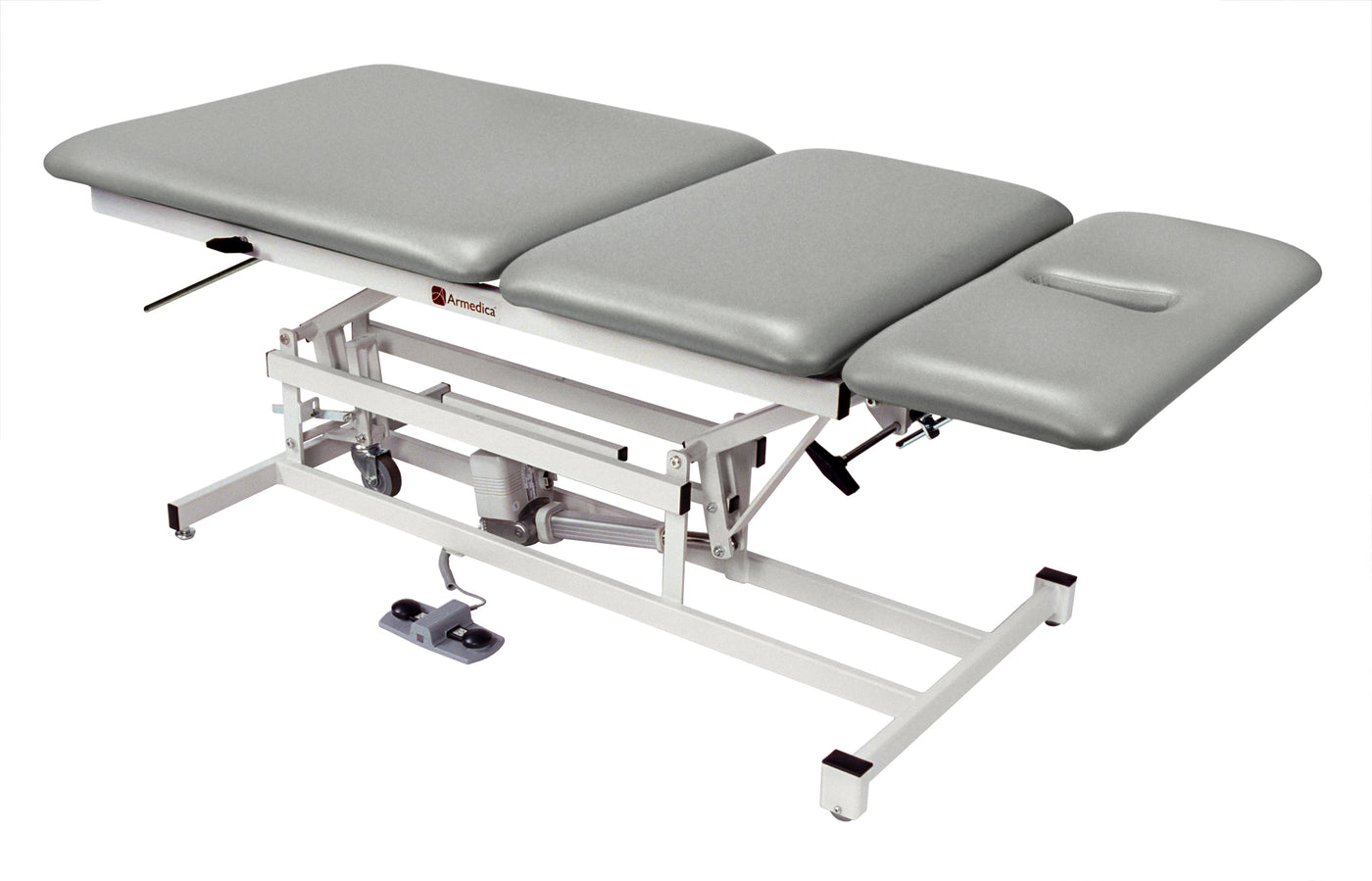

3-Section Treatment Table – 76" × 27", Hi-Lo, 400 lb Capacity

Description

The 3-Section Treatment Table is designed for strength, style, and patient comfort. With a 400 lb lifting capacity, durable steel frame, and high-quality vinyl upholstery, it delivers long-lasting reliability for clinics, rehab centers, and therapy offices.

The three-section top provides versatile positioning for multiple treatments. The head section includes a contoured face/nose opening and adjusts from +45° to -90° for maximum flexibility. The center section raises up to 30° with a spring-loaded lock for secure adjustment. The foot section raises to 73°, allowing for comfortable patient positioning during therapy.

Equipped with a footswitch height control and power-assisted caster system, this table ensures smooth operation and easy mobility without sacrificing stability.

Key Features

• 3-Section Design – For flexible patient positioning

• Head Section – 15" × 27", raises 45°, lowers 90°, with contoured face/nose opening

• Center Section – 22" × 27", raises 30° with spring-loaded lock

• Foot Section – 39" × 27", raises to 73°

• Adjustable Height – Hi-Lo range with powered footswitch control

• Strong & Reliable – 400 lb lifting weight capacity

• Durable Upholstery – 34 oz heavy-duty vinyl with Permablok³® bacterial protection

• Comfort Padding – 1.5" firm density foam tops

• Seamless Corners – Radiused and easy to clean

• Heavy-Duty Frame – Welded steel with hardened steel shoulder bolts & locking nuts

• Mobility – Power-assisted caster system

• Electrical – 110V/60Hz motor (220V/50Hz optional)

• Professional Grade – Trusted for physical therapy, chiropractic, and rehab care

Specifications

Type: 3-Section Treatment Table
Dimensions: 76" L × 27" W
Head Section: 15" × 27" (raises 45°, lowers 90°)
Center Section: 22" × 27" (raises 30°, spring-loaded lock)
Foot Section: 39" × 27" (raises 73°)
Height Adjustment: Hi-Lo with footswitch
Weight Capacity: 400 lbs
Upholstery: 34 oz heavy-duty vinyl, Permablok³® protection
Foam: 1.5" firm density
Frame: Welded steel construction
Power Supply: 110V/60Hz (220V/50Hz special order)
Caster System: Power-assisted mobility
Warranty: Manufacturer’s standard
Weight: ≈ 85,000 g (85 kg)

Indications

• Physical therapy and rehabilitation

• Chiropractic care

• Orthopedic and general clinical treatments
