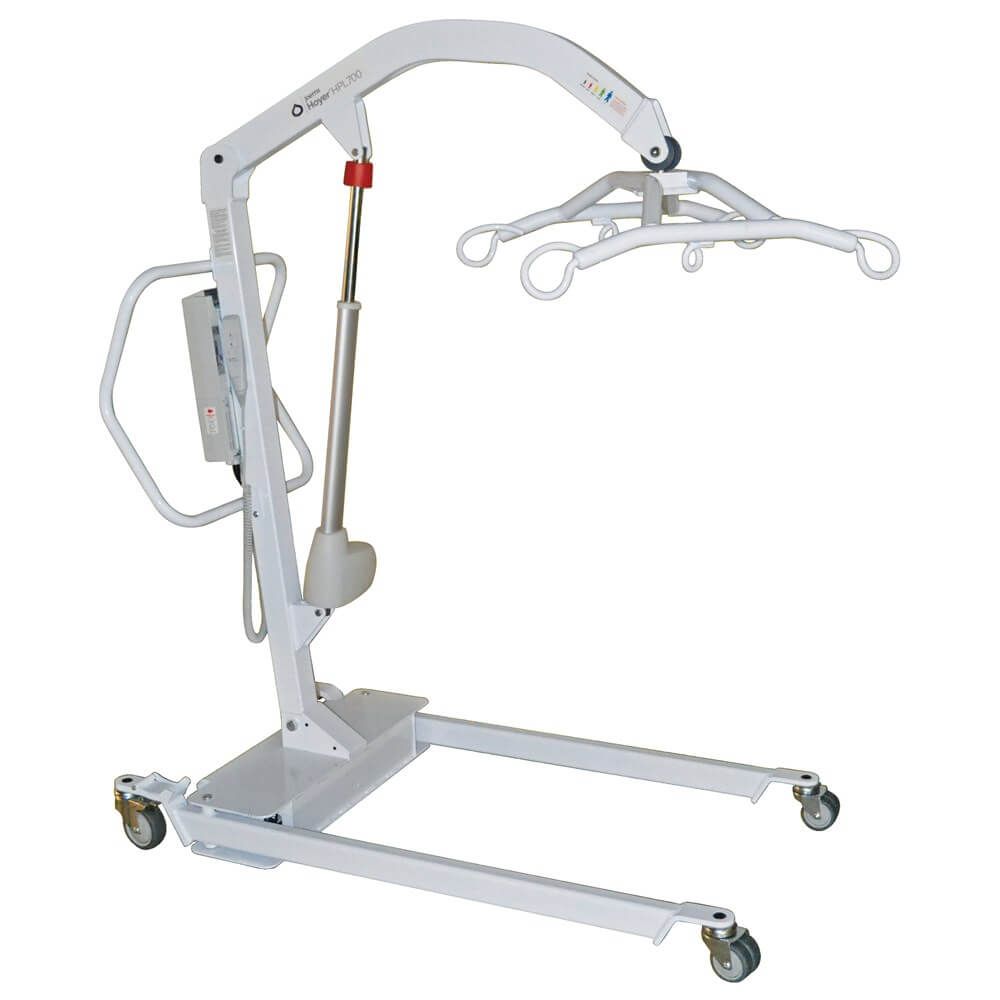

Hoyer Power Lifter with Power Base 6-Point Spreader Bar

The Hoyer Power Lifter with Power Base is a heavy-duty, power-assisted patient lift built for safe, efficient transfers in clinical, rehab, and home care settings. With a 700 lb (227 kg) safe working load, this bariatric lift is engineered for maximum stability, caregiver ease, and patient safety.

Key Features:

• High Weight Capacity: Supports up to 700 lbs (227 kg), ideal for bariatric care.

• Caregiver Comfort: Oversized push handle and low-friction casters for smooth maneuverability.

• 6-Point Cradle Design: Oversized loop-style spreader bar ensures secure and comfortable patient support.

• Power Base & Electronics: Powered by a 24VDC rechargeable sealed lead-acid battery with charger included.

• Safety Assured: Electrical shock protection (Class II charger; Type B lift). Patient transfers are safe and reliable.

• Adjustable Range:

  • Max height: 81" (2058 mm) | Min height: 57.75" (1467 mm)

  • Max reach: 37.75" (959 mm) | Min reach: 27" (686 mm)

• Stable Frame: One-piece base with legs adjustable from 23.5" (internal, closed) to 42.25" (internal, open).

• Durable Construction: Heavy-duty mast, boom, and base with braked rear casters and front twin casters.

• Component Weights:

  • Mast, base & boom assembly: 143.4 lbs (65 kg)

  • Power pack: 6.6 lbs (3 kg)

  • Base assembly: 83 lbs (38 kg)

  • Mast & boom: 40.4 lbs (18 kg)

  • 6-point spreader bar: 20 lbs (9 kg)

Designed for professional-grade reliability, the Hoyer Power Lifter provides secure patient handling, reducing strain on caregivers while ensuring patient dignity and comfort.
